We manufacture quality aluminum screen frames and aluminum pre-stretched frames ranging from 12 - 380 mesh count.
SX-B series aluminum frames Can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is grinded or sandblasted to make fabric adhesion fast and easy. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability. Aluminum is made to 6001 alloy for high chemical resistance, light weight, maximum strength and hardness, strong endurance and easy cleaning.
Features:
1: Size: Our regular sizes are:20*24,23*31,25*36 inch,30*40/50*60/60*70/60*90/60*120etc. And of course different sizes and designs are available also according to the client's requests.
2: Material: Aluminum frame
3: Packing: corner protection and carton
4: Quality and finish time guaranteed.
Aluminum profile: 6061 T5
Model | Specification(inch) | Outside Diameter (inch) |
B1 | 1.375*1.375*0.063 | 20*24 |
B2 | 1.375*1.375*0.0708 | 20*24 |
B3 | 1.5*1.5*0.063 | 23*31 |
B4 | 1.5*1.5*0.0708 | 23*31 |
B5 | 1.5*1.5*0.078 | 25*36 |
B6 | 1.5*1.5*0.094 | 30*40 |
B7 | 1.5*2*0.125 | 48*72 |
| B8 | 1*1*0.055 | 12*16 |
| B9 | 1.375*1.375*0.055 | 20*24 |
Aluminum screens features:
All screens are stretched with tension-stabilized low elongation mesh for the best quality results
TETKOMAT meter measures the tension in 5 points
KIWO and KOKI adhesive can be recommended on specific process
Renowned Sefar, NBC, Satti and local mesh available for customer request
A broad range of mesh counts are available for a variety of print applications
These recyclable aluminum frames are light weight, durable
Screens are stretched by our own made giant/high precision electric stretching unit
Machine stretched and glued
Our customers: Fuyao Group,Foxcoon,Midea,Haier and other China Top 500 companies.
Product Tags:
|
|

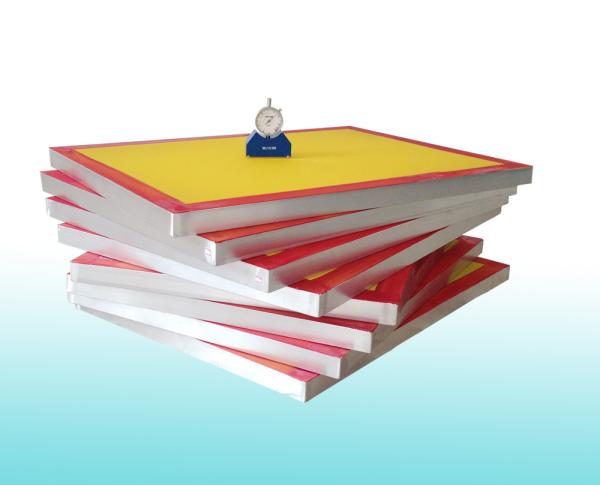

Kiwo adhesive aluminum silk screens Images
|
